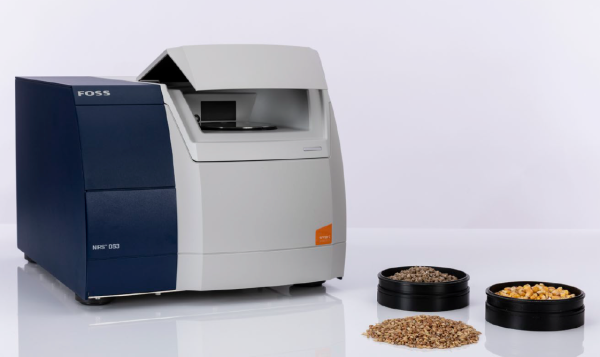

FOSS NIRS™ DS3 Feed
The innovative NIRS™ DS3 combines unique analytical performance with the latest software and networking services, making reliable test data for decision-making more available than ever. It’s a complete solution that supports all aspects of your analytical operations from calibration development to measurement and data integration.
Key Features:
- Effective analytical operations
Optimise analytical workflow for maximum efficiency at minimal cost. Ensure instrument availability with Smart Start, reduce manual tasks using Automated Sample Transfer of data and manage instruments from any location using FossManager™ software.
- Complete solution builds confidence
A wide spectral range makes NIRS DS3 F a versatile instrument that is ideally suited to feed analysis. Statistical reports based on data from multiple instruments allow you to track the performance of individual units or a whole fleet of instruments.
- Unique levels of uptime
Robust and reliable hardware is complemented by advanced diagnostics for troubleshooting and simple instrument maintenance. Avoid the risk of unscheduled downtime with SmartCare™ remote instrument monitoring.
Sample type:

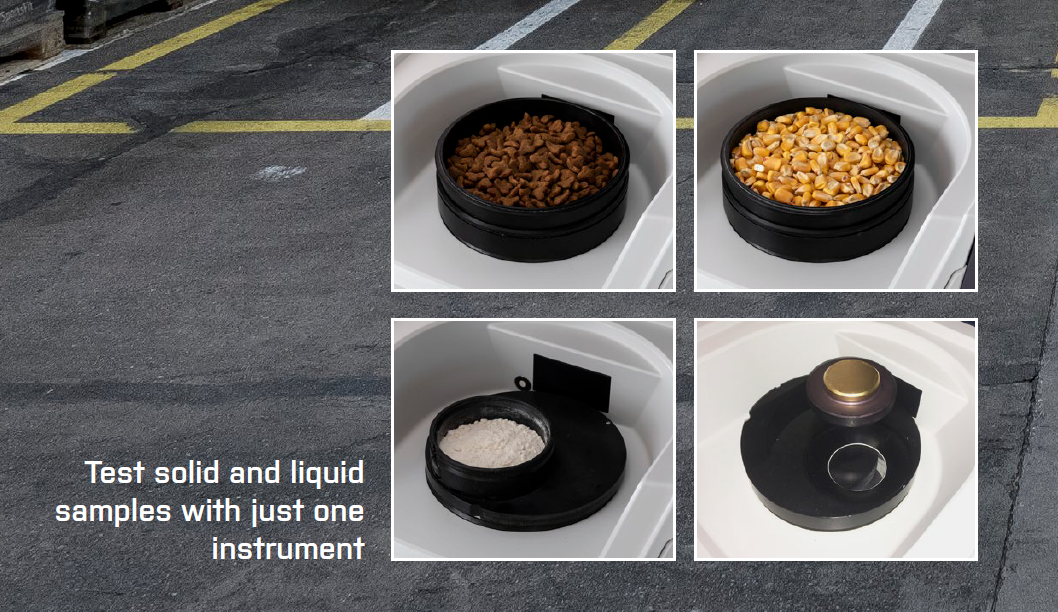

Unground or liquid material including compound feed, grains/cereals, vegetal protein meals, vegetal by-products, animal by-product/rendering, forages, pet food and more.
Parameters:
Enquiry about FOSS NIRS™ DS3 Feed
Additional information
| Dimensions (w x d x h) | 375 x 490 x 300 mm |
|---|---|
| Weight | 27 kg |
| Degree of protection | IP 65 |
| Measurement mode | Reflectance or transflectance (for liquids) |
| Wavelength range | 400 – 2500 nm |
| Detector | Silicon (400 – 1100 nm), Lead Sulphide, PbS (1100 – 2500 nm) |
| Optical bandwidth | 8.75 ± 0.1 nm |
| Data resolution | 0.5 nm |
| Number of data points | 4200 |
| Number of subsamples | Default: 7 for small cup; 8 for large cup |
| Self test | 12 minutes (variable) |
| Analysis time | <1 minute for 32 scans (8 subsamples, 4 scans per subsample) |
| Network connections | FossManager™ |
