HPTLC PRO Module APPLICATION
The HPTLC PRO Module APPLICATION is part of the CAMAG® HPTLC PRO SYSTEM – the first fully automated HPTLC system worldwide.
It is designed for highly precise application of samples as bands onto HPTLC glass plates. Controlled by the CAMAG® HPTLC Software visionCATS, the autonomous application of up to 75 samples is supported (on up to five HPTLC plates).

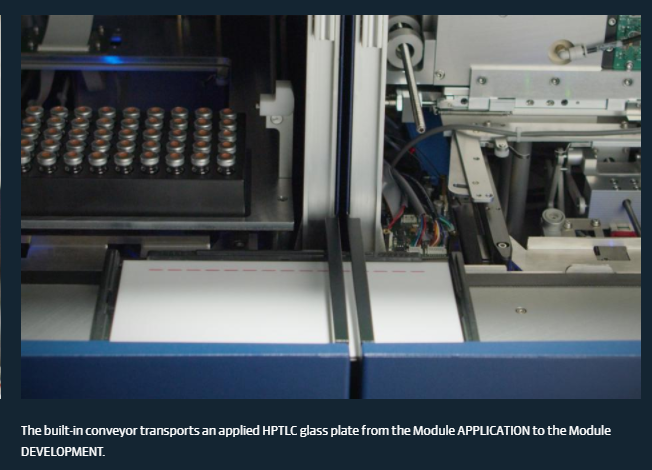

Users have the choice to operate a module as stand-alone or as part of the HPTLC PRO SYSTEM. If two or more modules are connected to form a system, a conveyor moves the HPTLC plate from one module to the other.
Key Features:
- Part of the fully automated HPTLC PRO SYSTEM
- Spray-on application of samples as bands

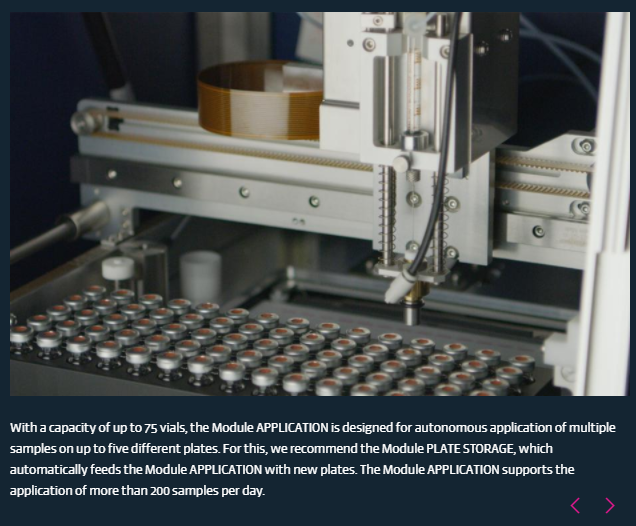

- Autonomous application of up to 75 samples
- HPTLC glass plates (20 x 10 cm)
- Software-controlled by visionCATS
Key Benefits:

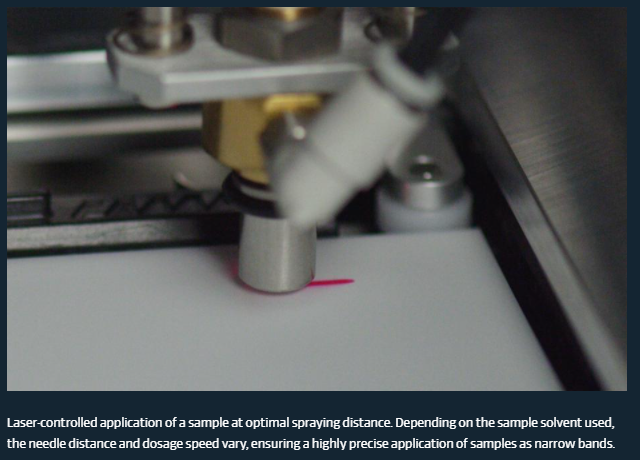

- Highly precise application zones through optimized spraying procedure adapted for each sample solvent
- Advanced cleaning capacities (two rinsing solutions)

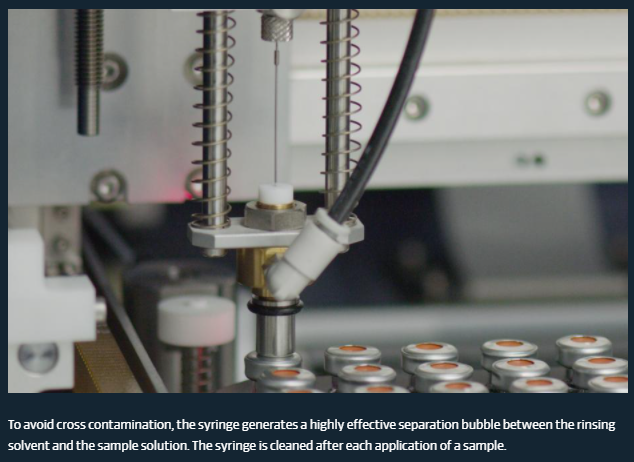

- Improved cleaning procedure and application strategy to prevent cross contamination
- Minimized sample and solvent consumption
